Variantes de produits

Légende

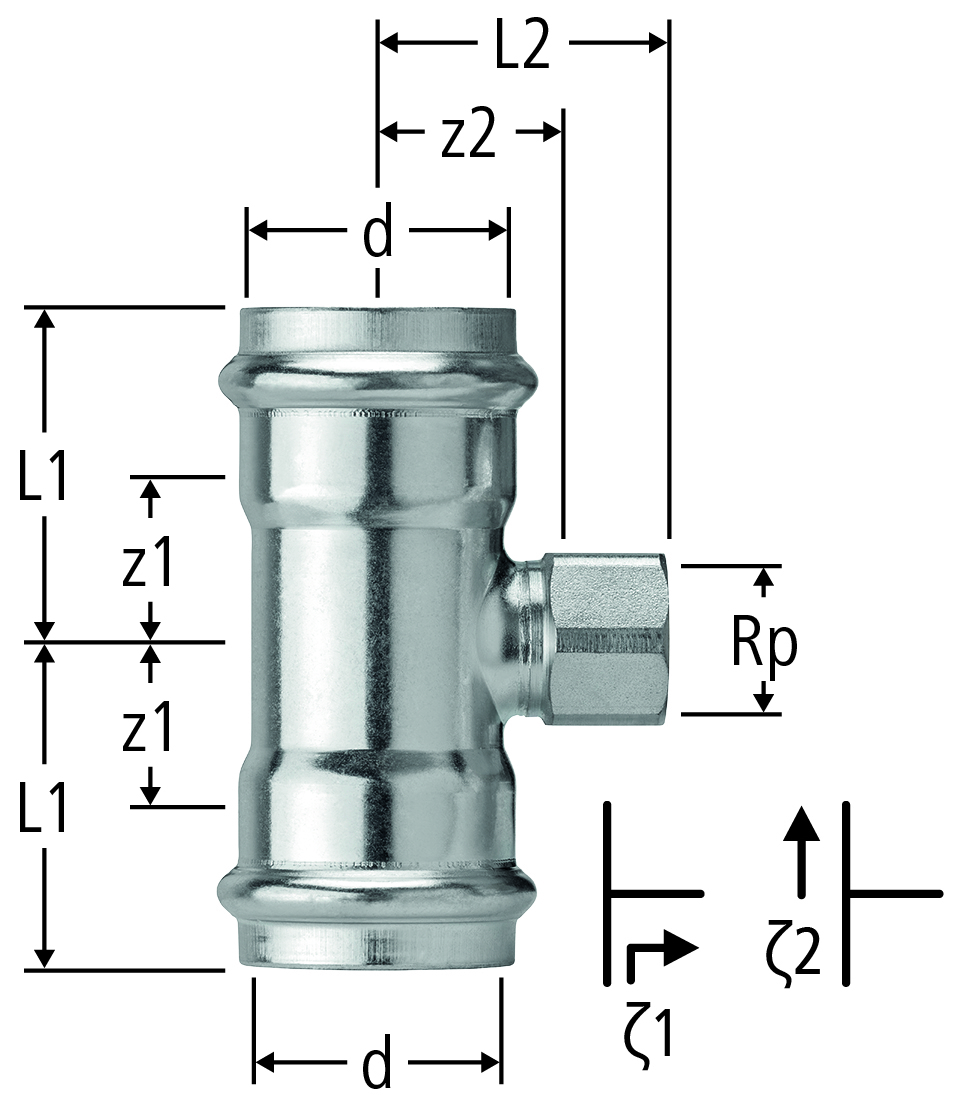

Rp	d	z1	z2	L1	L2	ζ1	ζ2		N° d'art.	CHF	VE	suissetec	Commander	Pièces de rechange et accessoires
15 x ½ x 15 15 x ½ x 15	½	15	19	16	41	29	1.3	0.3	15 x ½ x 15	55013.22	34	5	323.412	55013.22 Commander pcs.	Afficher

18 x ½ x 18 18 x ½ x 18	½	18	21	15	43	30	1.3	0.3	18 x ½ x 18	55013.23	34	5	323.413	55013.23 Commander pcs.	Afficher

22 x ½ x 22 22 x ½ x 22	½	22	22	19	45	32	1.3	0.2	22 x ½ x 22	55013.25	34	5	323.414	55013.25 Commander pcs.	Afficher

22 x ¾ x 22 22 x ¾ x 22	¾	22	24	19	47	33	1.2	0.2	22 x ¾ x 22	55013.26	34	5	-	55013.26 Commander pcs.	Afficher

28 x ½ x 28 28 x ½ x 28	½	28	21	26	45	36	1.3	0.1	28 x ½ x 28	55013.27	34	5	323.415	55013.27 Commander pcs.	Afficher

28 x ¾ x 28 28 x ¾ x 28	¾	28	23	23	47	37	1.2	0.1	28 x ¾ x 28	55013.28	34	5	-	55013.28 Commander pcs.	Afficher

28 x 1 x 28 28 x 1 x 28	1	28	28	23	52	40	1.1	0.1	28 x 1 x 28	55013.36	34	5	-	55013.36 Commander pcs.	Afficher

35 x ½ x 35 35 x ½ x 35	½	35	20	26	45	40	1.3	0.1	35 x ½ x 35	55013.29	34	5	323.416	55013.29 Commander pcs.	Afficher

35 x ¾ x 35 35 x ¾ x 35	¾	35	19	26	45	41	1.2	0.1	35 x ¾ x 35	55013.32	34	5	-	55013.32 Commander pcs.	Afficher

42 x ½ x 42 42 x ½ x 42	½	42	19	30	55	43	1.3	0.1	42 x ½ x 42	55013.30	34	1	323.417	55013.30 Commander pcs.	Afficher

42 x ¾ x 42 42 x ¾ x 42	¾	42	19	30	55	44	1.2	0.1	42 x ¾ x 42	55013.33	34	1	-	55013.33 Commander pcs.	Afficher

54 x ½ x 54 54 x ½ x 54	½	54	18	36	58	49	1.3	0.1	54 x ½ x 54	55013.31	34	1	323.418	55013.31 Commander pcs.	Afficher

54 x ¾ x 54 54 x ¾ x 54	¾	54	18	35	58	50	1.2	0.1	54 x ¾ x 54	55013.34	34	1	-	55013.34 Commander pcs.	Afficher

54 x 1 x 54 54 x 1 x 54	1	54	21	36	61	53	1.1	0.1	54 x 1 x 54	55013.35	34	1	-	55013.35 Commander pcs.	Afficher

64 x ¾ x 64 64 x ¾ x 64	¾	64	27	42	70	55	1.2	0.1	64 x ¾ x 64	55013.70	33	1	-	55013.70 Commander pcs.	Afficher

76.1 x ¾ x 76.1 76.1 x ¾ x 76.1	¾	76.1	27	47	77	62	1.2	0.1	76.1 x ¾ x 76.1	55013.72	33	1	323.419	55013.72 Commander pcs.	Afficher

88.9 x ¾ x 88.9 88.9 x ¾ x 88.9	¾	88.9	27	55	77	69	1.2	0.1	88.9 x ¾ x 88.9	55013.74	33	1	323.421	55013.74 Commander pcs.	Afficher

108 x ¾ x 108 108 x ¾ x 108	¾	108	24	63	81	78	1.2	0.1	108 x ¾ x 108	55013.76	33	1	323.422	55013.76 Commander pcs.	Afficher

Tout dans le panier

CAO / BIM

Description	Optipress-Therm-Té
Taille
Numéro d’article	55013.22
